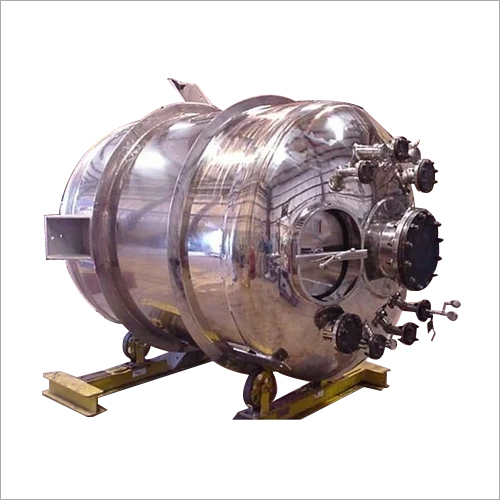

Limpet Coil Reactor

About Limpet Coil Reactor

Chemical reactors known as limpet coil reactors feature a heating or cooling system in the shape of a coil that is welded to the outer surface of the reactor vessel. The coil is made in the shape of a helical or spiral, resembling a limpet shell, hence the term "limpet coil reactor." The coil and the reactor's contents can transmit heat effectively thanks to this design.

The following are some salient qualities and benefits of a limpet coil reactor:

1. Efficiency in heat transmission: A limpet coil reactor's major goal is to promote heat transfer between the coil and the reactor's contents. Usually, a heating or cooling medium, like steam or chilled water, is connected to the coil. The exact temperature control during the chemical reaction is made possible by the effective heat exchange promoted by the intimate contact between the coil and the reactor wall.

2. Versatility: Limpet coil reactors are suitable for a wide range of chemical reactions, including those requiring heating, cooling, or both. It is appropriate for a variety of applications since the temperature of the reactor's contents can be controlled.

3. Even distribution of heat or cold throughout the reactor is made possible by the helical or spiral shape of the limpet coil. This aids in preserving a constant temperature profile inside the reactor, guaranteeing reliable reaction conditions and high-quality end products.

4. Limpet coil reactors feature a small design because the coil is welded to the outside of the reactor vessel, saving space. This design reduces the reactor's necessary footprint, making it appropriate for deployments with limited space.

5. Simple maintenance: The coil's exterior positioning makes maintenance and cleaning procedures simple. If necessary, it enables simple access for the coil's inspection, maintenance, or replacement without disturbing the reactor's contents.

6. Safety: Since the heating or cooling liquid circulates outside the reactor vessel, limet coil reactors offer an additional degree of protection. This lessens the possibility of medium contamination or medium leaking into the reaction mixture.

7. To ensure good operation and prevent any unfavourable reactions or corrosion, it is crucial to remember that the material used for the limpet coil and the reactor vessel itself should be compatible with the chemical process. Stainless steel and other alloys with strong corrosion resistance and heat transfer qualities are frequently used in construction.

In a wide range of industries, such as chemical production, pharmaceuticals, petrochemicals, food processing, and many others, limpet coil reactors are frequently employed. Successful chemical reactions depend on accurate temperature control and effective heat transfer.

Product details

Material	Stainless Steel
Max Design Pressure	10-15 bar
Usage/Application	CHEMICAL / COMMERCIAL
Capacity	1000-10000L

Tailored for Diverse Industrial Applications

Our Limpet Coil Reactors serve multiple industries including chemical, pharmaceutical, food, paint, and resin manufacturing. With multiple customization options, they cater seamlessly to large-scale processing or smaller, specialty batches.


Versatile and Durable Design

These reactors feature pressure ratings up to 12 kg/cm2 and handle temperatures up to 300C. Built with choices in coil material and types, agitator options, and anti-corrosive coatings, each unit is engineered to withstand rigorous industrial conditions.


User-Centric Features for Maintenance and Efficiency

An integrated manhole allows straightforward access for cleaning and maintenance. The provision for jackets and customizable mounting ensure smooth installation and flexible operation according to site needs.
